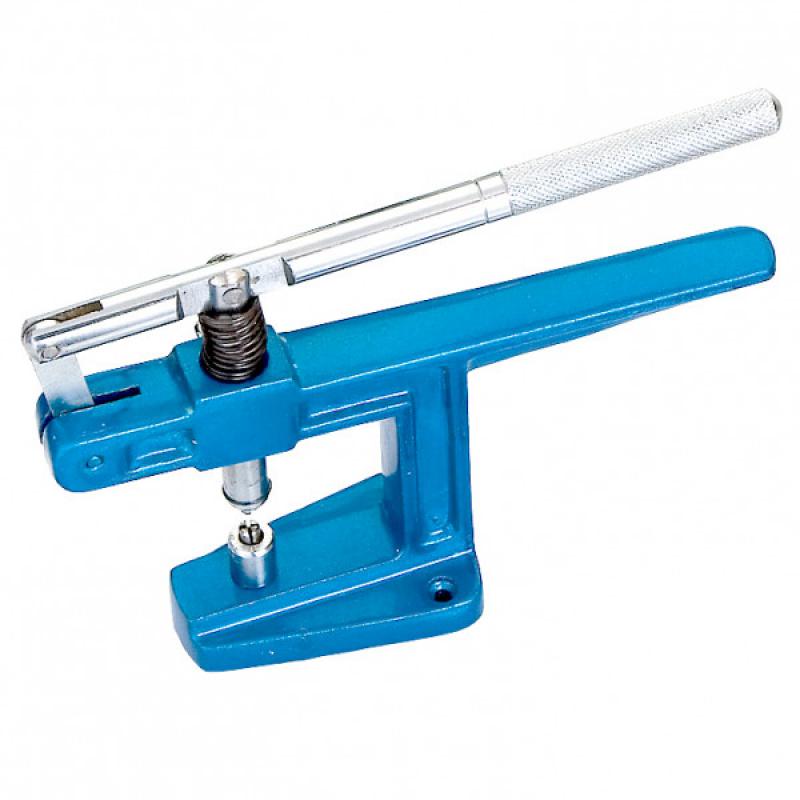

Watch crystal and case press, 12 dies from Ø22 to Ø40 mm

One press for crystal and case

This press handles two common workshop tasks: pressing a watch crystal into its bezel or case, and closing a snap-on case back after a repair or a battery change. Pressure is applied evenly and centred, which reduces the risk of fitting the crystal askew.

Features

• Stainless steel press, blue finish.
• 12 plastic pressing dies.
• Die diameters: from Ø22 × 21 mm to Ø40 × 39 mm.

Using it to fit a crystal

• Choose a die whose diameter matches the crystal, so that it presses around the whole edge.
• Place the case on the base with a suitable die underneath.
• Centre the crystal, then lower the press gradually until it snaps into place.
• Check that the crystal sits flat and the gasket is correctly seated.

For a crystal with a gasket, check the gasket's condition before fitting (see replacing a watch gasket). Measure the crystal diameter with a caliper using our guide measuring with a caliper, then find the right crystal with the find my crystal tool.
