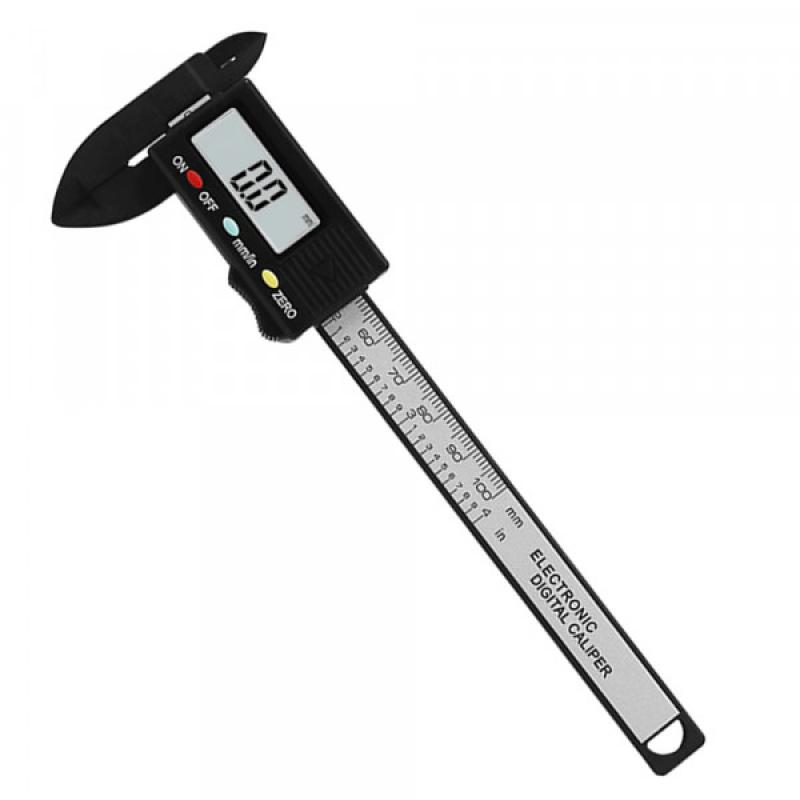

Digital caliper 0 to 100 mm, carbon fibre

Measuring a watch crystal accurately

Before ordering a replacement crystal, you need to know its diameter and thickness. This digital caliper reads these dimensions quickly on its digital display, with no vernier scale to interpret. It can also measure a case, a date magnifier, a gasket or the width of a strap.

Features

• Measuring capacity up to 100 mm (10 cm).
• Lightweight carbon fibre body.
• Liquid crystal display.
• Two units: millimetres or inches.
• Outside, inside (bore) and depth measurements.
• Thumb grip for smooth movement of the slider.
• Runs on an LR44 (AG13) battery.

Measuring your crystal properly

• Clean the crystal and the caliper jaws.
• Zero the display with the jaws closed.
• For the diameter, hold the crystal between the outside jaws without forcing and take several readings while turning it.
• For the thickness, measure at the edge of the crystal, then at the centre if it is domed.

Our guide measuring with a caliper explains the method in detail. Once you have the dimensions, use the find my crystal tool and read types of watch crystal to choose the material.
