Hytrel I-ring crystal gasket 0.35 × 1.00 mm

A 1 mm height with a thin wall

This I-ring crystal gasket combines a thin 0.35 mm wall with a 1.00 mm height. The Hytrel ring sits between the crystal and the bezel or case, seals the assembly and holds the crystal after it has been pressed in. It answers a specific need: a crystal with a tall edge fitted in a narrow seat, where a 0.40 mm thick gasket would be too wide.

Specifications

• Material: Hytrel, an engineering polymer.
• 0.35 mm wall thickness, 1.00 mm height.

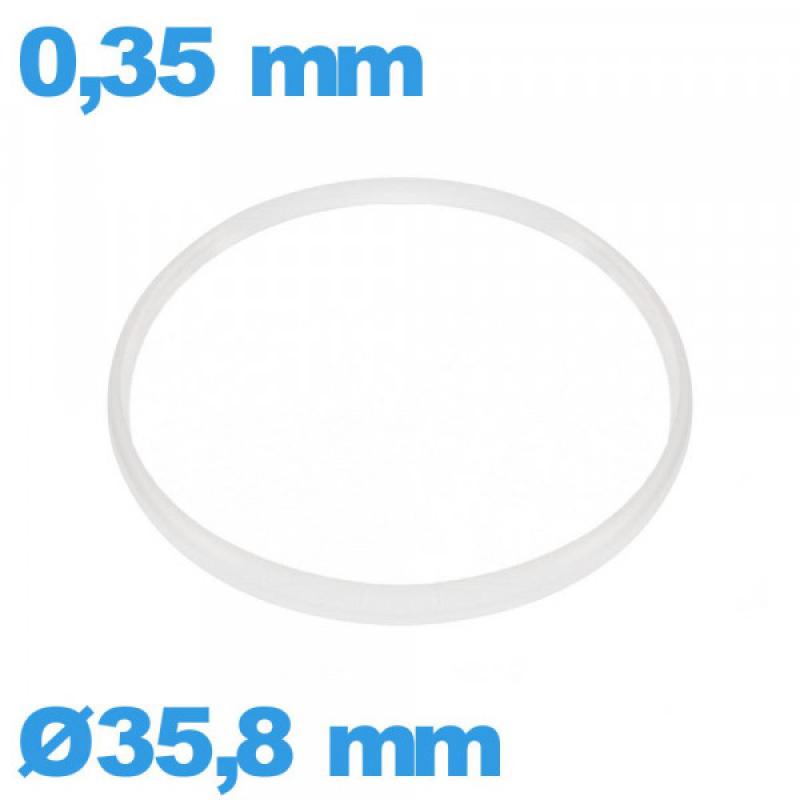

• 14 diameters: a continuous series from 14.28 to 19.78 mm (.28 and .78 sizes), plus 35.8 and 36.0 mm.
• €17.90 incl. VAT, the same price for every size.

Thickness or height: do not mix them up

Thickness (0.35 mm) is the wall of the ring; it depends on the gap between the crystal and the bezel. Height (1.00 mm) is chosen according to the crystal edge and the depth of the seat. To take these measurements accurately, follow our guide on how to measure a watch gasket and our guide on how to use a caliper. The gasket diameter equals the crystal diameter.

Fitting tips

Replace the gasket each time the crystal is changed, as the old one is compressed. With a 1 mm height, make sure the gasket stays upright all the way round before pressing. The procedure is explained in our guide on how to replace a watch gasket.

Gaskets from the ISO Swiss range.

Available sizes
